Connect to MySQL databases from your Zato services using managed connection pools. Configure the pool once in the Dashboard, then access it from any service without worrying about connection lifecycle or credentials.

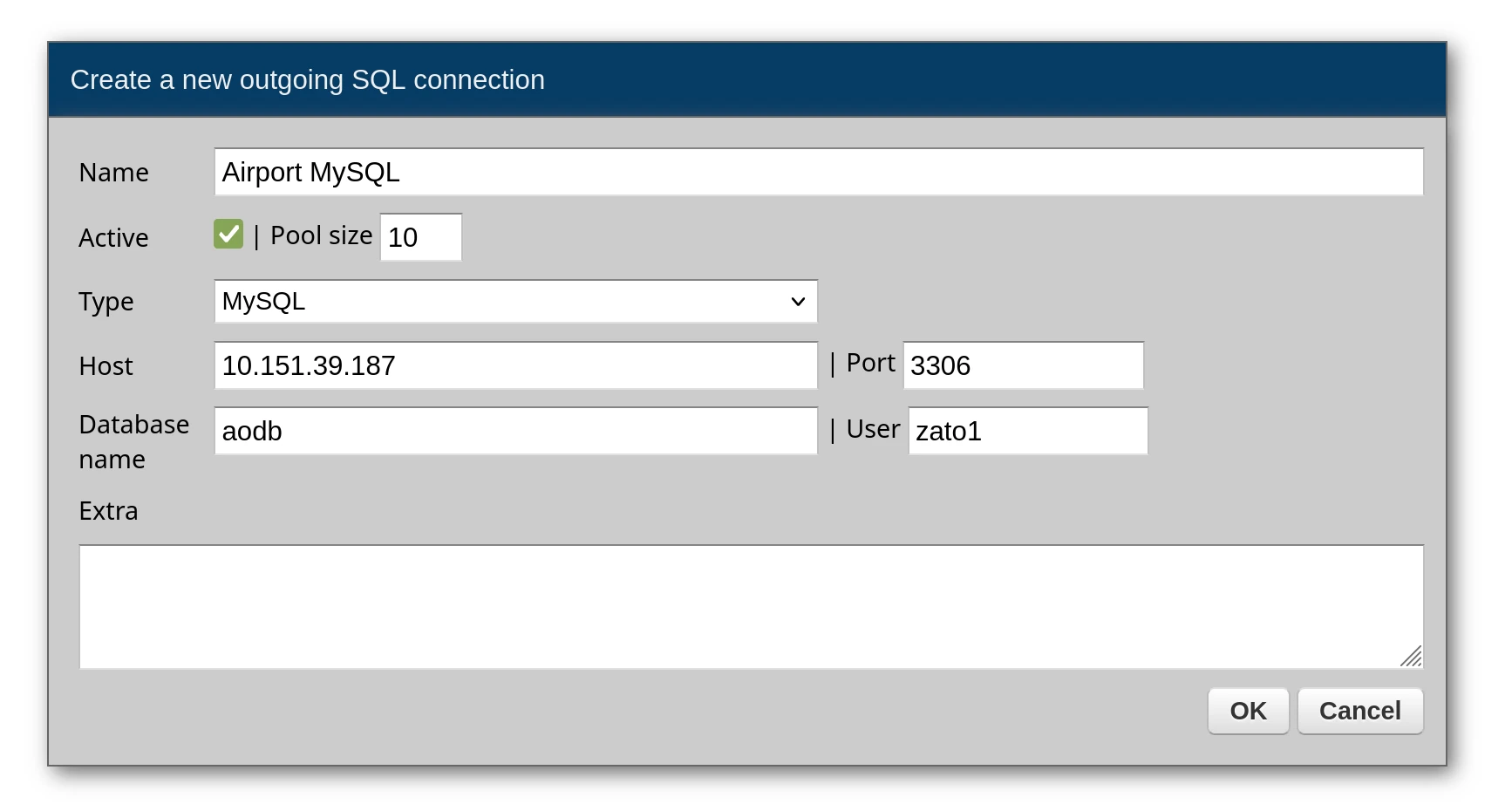

In your Dashboard, head to Connections → Outgoing → SQL. Add a new connection with MySQL as the type and enter the host, port, database name, and credentials.
The connection is now ready - your services can use it immediately by referencing its name.
Run SQL statements through conn.execute, passing parameters as a dictionary. Results arrive as a list where each element is a dictionary representing one row.
# -*- coding: utf-8 -*-
# Zato
from zato.server.service import Service
class GetTerminals(Service):
def handle(self):
# Get the connection by name
conn = self.out.sql['Airport MySQL']
# Query with named parameter
query = 'SELECT * FROM terminals WHERE is_active = :is_active'
params = {'is_active': 1}
# Execute returns a list of dicts
result = conn.execute(query, params)
self.response.payload = result
Response:
[
{"terminal_id": 1, "name": "Terminal 1", "is_active": 1, "gates_count": 24},
{"terminal_id": 2, "name": "Terminal 2", "is_active": 1, "gates_count": 18}
]
To fetch a single record, use conn.one - it returns that record as a dictionary and raises an exception if the query matches zero or more than one row:
# -*- coding: utf-8 -*-
# Zato
from zato.server.service import Service
class GetTerminalById(Service):
""" Returns a single terminal by its ID.
"""
input = 'terminal_id'
def handle(self):
# Get the connection from the pool
conn = self.out.sql['Airport MySQL']
# Build the query
query = 'SELECT * FROM terminals WHERE terminal_id = :terminal_id'
# Assign input data to query parameters
params = {'terminal_id': self.request.input.terminal_id}
# Run the query - returns a dict directly, raises if not found
terminal = conn.one(query, params)
# Return the result to the caller
self.response.payload = terminal
When the record may or may not exist, conn.one_or_none is the right choice - it returns None for missing records rather than throwing an error:
# -*- coding: utf-8 -*-
# Zato
from zato.server.service import Service
class FindGateByCode(Service):
""" Finds a gate by its code, returns None if not found.
"""
input = 'code'
def handle(self):
# Get the connection from the pool
conn = self.out.sql['Airport MySQL']
# Build the query
query = 'SELECT * FROM gates WHERE gate_code = :code'
# Assign input data to query parameters
params = {'code': self.request.input.code}
# Run the query - returns dict or None if not found
gate = conn.one_or_none(query, params)
# Return the result or an error
if gate:
self.response.payload = gate
else:
self.response.payload = {'error': 'Gate not found'}
self.response.status_code = 404
Adding new rows works the same way - build your INSERT statement with named placeholders and pass the values in a dictionary:
# -*- coding: utf-8 -*-
# Zato
from zato.server.service import Service
class CreateBaggageClaim(Service):
""" Creates a new baggage claim record for a flight.
"""
input = 'flight_id', 'carousel_number'
def handle(self):
# Get the connection from the pool
conn = self.out.sql['Airport MySQL']
# Build the INSERT query
query = """
INSERT INTO baggage_claims (flight_id, carousel_number, start_time)
VALUES (:flight_id, :carousel, NOW())
"""
# Assign input data to query parameters
params = {
'flight_id': self.request.input.flight_id,
'carousel': self.request.input.carousel_number
}
# Execute the insert
conn.execute(query, params)
# Return success response
self.response.payload = {'message': 'Baggage claim created'}
self.response.status_code = 201
Modifying and removing records follows the same pattern - construct your statement and execute it:
# -*- coding: utf-8 -*-
# Zato
from zato.server.service import Service
class CloseGate(Service):
""" Closes a gate by setting its status to closed.
"""
input = 'gate_id'
def handle(self):
# Get the connection from the pool
conn = self.out.sql['Airport MySQL']
# Build the UPDATE query
query = """
UPDATE gates
SET status = :status, closed_at = NOW()
WHERE gate_id = :gate_id
"""
# Assign input data to query parameters
params = {
'gate_id': self.request.input.gate_id,
'status': 'closed'
}
# Execute the update
conn.execute(query, params)
# Return success response
self.response.payload = {'message': 'Gate closed'}
Database queries often feed into other operations - loop through the results and call additional services for each record:
# -*- coding: utf-8 -*-
# Zato
from zato.server.service import Service
class NotifyDelayedFlights(Service):
""" Finds delayed flights and sends notifications.
"""
def handle(self):
# Get the connection from the pool
conn = self.out.sql['Airport MySQL']
# Build the query to find delayed flights that haven't been notified
query = """
SELECT flight_id, airline_code, delay_minutes
FROM flights
WHERE delay_minutes > :threshold AND notified = 0
"""
# Set the delay threshold parameter
params = {'threshold': 30}
# Execute and get all delayed flights
delayed_flights = conn.execute(query, params)
# Process each delayed flight
for flight in delayed_flights:
# Send notification via another service
self.invoke('notification.send-delay-alert',
flight_id=flight['flight_id'],
delay_minutes=flight['delay_minutes']
)
# Mark the flight as notified
update_query = 'UPDATE flights SET notified = 1 WHERE flight_id = :flight_id'
conn.execute(update_query, {'flight_id': flight['flight_id']})
When creating a connection in the Dashboard, you can provide extra options as a list of key=value pairs. These are passed directly to the database driver. Each option goes on its own line.
| Option | Description |
|---|---|
charset | Character set for the connection (e.g., utf8mb4) |
connect_timeout | Connection timeout in seconds |
read_timeout | Timeout for reading from the connection |
write_timeout | Timeout for writing to the connection |
ssl_ca | Path to CA certificate file |
ssl_cert | Path to client certificate file |
ssl_key | Path to client private key file |
ssl_check_hostname | Verify server hostname matches certificate (true/false) |
Example in Dashboard:
Always use parameterized queries with named parameters (:param_name) rather than string formatting. This prevents SQL injection attacks and makes your queries more readable.
# Correct - parameterized query
query = 'SELECT * FROM users WHERE user_id = :user_id AND status = :status'
params = {'user_id': 123, 'status': 'active'}
result = conn.execute(query, params)
# Wrong - string formatting (vulnerable to SQL injection)
# query = f'SELECT * FROM users WHERE user_id = {user_id}'
